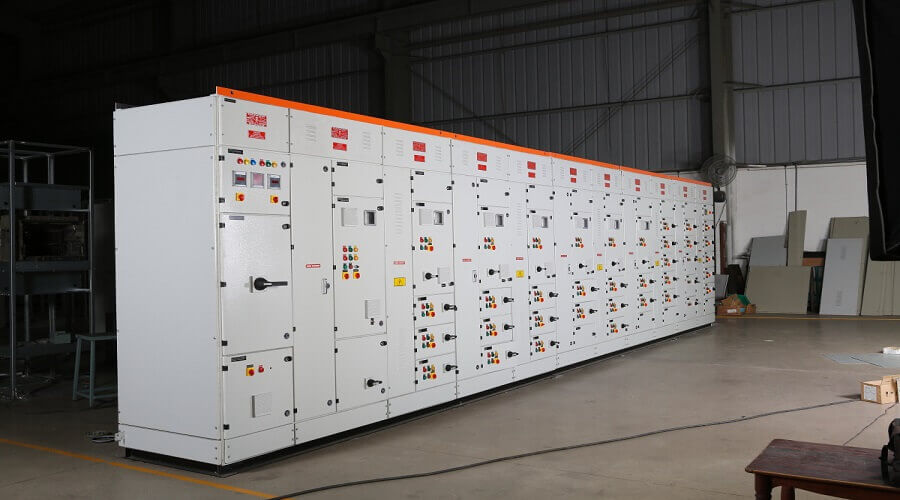

Features

  • Design confirms to Partially type test assemblies as per IEC:61439-1(2009)/IS 8623(PTTA).
  • Design of Panels up to 100 KA breaking capacity.
  • Panels up to IP65 protection.
  • Freedom of choice in the selection of electrical equipment with regard to switchgear make, type and breakers with fixed/withdrawable, plug in versions.
  • Manufacturing of panels by Usage of Schneider Siemens, Schneider, ABB & L&T switchgear.
  • Flexible Design of Panels up to 5000A.
  • Having the Design of PCCs with Double bus bar arrangement.
  • PCCs / MCCs /PDBs shall be arranged in multi-tier formation.
  • PLC based Panels from PLCs of Schneider, Siemens, ABB & Rockwell Automation.
  • All sheet steel material shall undergo seven-tank process having the options with required Powder color RAL 7032/7035 & IS 631.
  • Both Cable front/rear side accessibility option with provision of double front construction also provided.
  • Cable compartment of adequate size shall be provided in the PCCs, MCCs, and PDBS for easy termination of all incoming and outgoing cables.
  • Panel having extendable feature for both sides.
  • Testing facilities of all Electrical products.

    • Technical Specification

    Switchboard Reference Standard IEC:61439-1(2009)/IS 8623
    Form of separation Upto Form 3B/4B.
    Rated operational Voltage @ Frequency (50HZ) Upto 690V AC.
    Rated current of the busbars Upto 5000A
    Rated short time withstand current Upto 100KA/1Sec
    Ambient Temperature 40+ Deg C
    Degree of Protection External/Internal compartment Upto IP:6X

    Type of Panels:

  • Power Control Centre (PCC) Panels: Double / Single busbar arrangement
  • Motor Control Centre (MCC) Panels: Non-Drawout / Drawout type
  • Automatic Power Factor Correction (APFC) Panels: Thyristor / Contactor & Reactor combinations
  • Automatic Mains Failure (AMF) Panels
  • Diesel Generator Synchronization Panels
  • Power & Lighting Distribution Boards
  • PLC & Intelligent Motor Control Centre Panels
