Technical Specification

Conformance to standards IS8623-1 / IEC 439
Internal Arc Containment IEC 61641
Seismic withstand IS 1893
Short circuit withstand (Icw) - main bus 65kA / 1sec / 143kA peak
Short circuit withstand (Icw) - neutral 39kA / 1sec / 82kA peak
Short circuit withstand (Icw) - earth 39kA / 1sec / 82kA peak
Degree of protection (IP) IP 4X, 5X, X3, X4
Ambient temperature 40 Degree C / 45 Degree C / 50 Degree C
Temperature rise As per IEC 61439- 2
Seismic conformance test Zone III & V
Rated insulation voltage upto 1000V
Rated operational voltage upto 690V
Rated impulse withstand 8kV
Main busbar rating upto 5000A
Busbar execution Interleaved / non-Interleaved
Busbar options Copper / aluminium
lnfeed termination Cable / bus ways / busduct
lnfeed entry Top / bottom
Cable feeder access Front / rear
ACB cubicle Single tier
Form of seperation upto form 4B
Standard height 2300mm
Standard depth 1120mm / 560mm
Standard colour shade RAL 7035

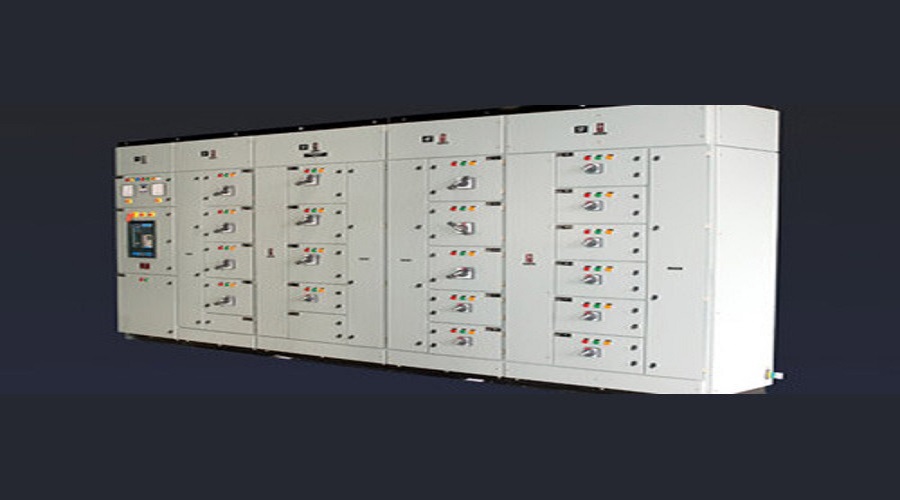

Range of Panels

  • Power Control Centres
  • Communication capable intelligent power control centres (IPCC)
  • Withdrawable motor control centres with patented Alstan busbar technology
  • Energy management PCCs for plant and building
  • Motor control Centres - Fuseless and with Fuse
  • Intelligent motor control centres (IMCCs)
  • Integrated PMCCs for Ethernet Connectivity
  • Automatic power factor correction panels
  • All variants available with a choice of aluminum and copper for busbars
  • Degree of ingress protection upto IP54 for all ratings
