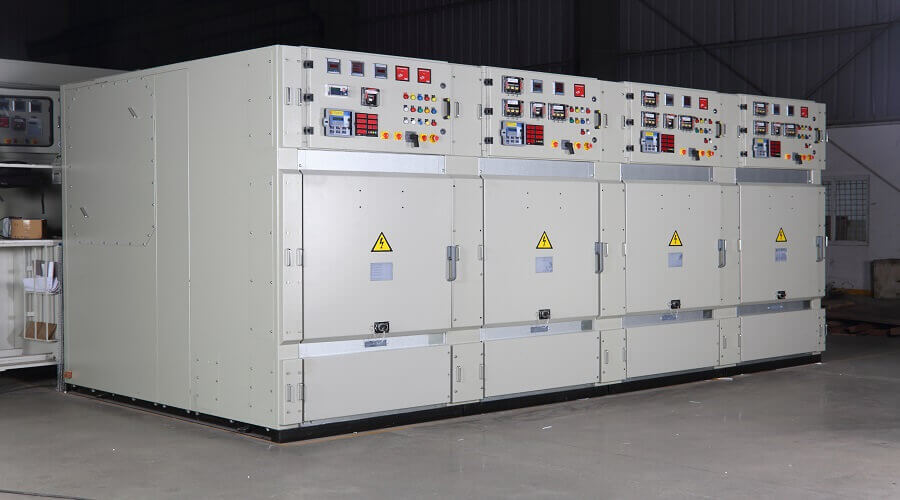

Features

  • Designed and tested as per the Latest IS:3427 standards.
  • Modular switchgear with PM Class partition having extendable feature.
  • Cassette mounted Circuit breaker with draw out feature for easy maintenance.
  • Having optional "earth switch" facility.
  • Fully compartmentalized construction for optimal safety and protection.
  • Draw out/Fixed type "VT" Mounting.
  • Pad lockable door to ensure operator safety.
  • Automatic independent safety shutters to prevent accidental contact with live parts.
  • Accessible to cable terminals from the rear and side.
  • Testing facilities of all Electrical products.

    • Technical Specification

    Nominal Voltage Upto 11KV 33KV
    Make ABB-VD4/VMAX ABB-VD4
    Switchboard Reference Standard IS 3427 IS 3427
    VCB IEC62271-100 IEC62271-100
    Rated voltage @ Frequency (50HZ) 12KV 36KV
    Ambient Temperature Ma +40 Deg C Ma +40 Deg C
    Rated power frequency withstand voltage (VRMS) 28KV 70KV
    Rated impulse withstand voltage(VPEAK) 75KV 170KV
    Rated short time withstand current (3sec) Upto 40KA Upto 31.5KA
    Degree of Protection External compartment IP:4X/5X IP:4X/5X
    Degree of Protection Internal compartment IP:2X IP:2X
